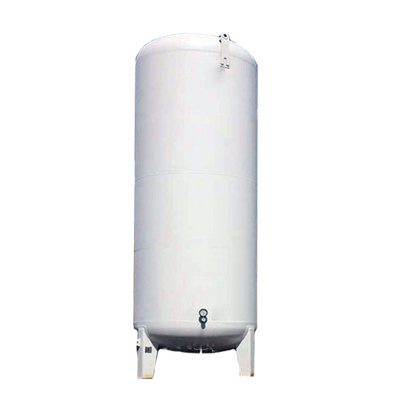

Gas station/vertical type cryogenic mining price/LNG cryogenic storage tank LNG storage tank fish farming price

1.0 set
MOQ
Gas station/vertical type cryogenic mining price/LNG cryogenic storage tank LNG storage tank fish farming price
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Condition: New
Applicable Industries: Garment Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Construction works , Energy & Mining, Food & Beverage Shops, Chemical Machinery
Max Working Pressure(MPa): 2.16 MPa
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: PLC, Pressure vessel
Capacity: 5000 Liter
Dimension(L*W*H): 4812*1916*2160mm
Weight: 4020
Warranty: 1 Year
Key Selling Points: Long Service Life
Showroom Location: Kenya, South Africa, Nigeria
Product name: High pressure 2.16Mpa low temperature liquid LCO2 storage tanks
Application: filling station / fish farm / hospital
Material: stainless steel
Color: White / customzied
Type: Vertical or Horizontal
Medium: LNG/O2/N2/Ar2/CO2
Standard: GB150-2011
Design pressure: 2.16Mpa
Certificazione: ISO9001
Keywords: vertical type cryogenic lng storage tank cryogenic lng storage tank
Informazioni di base
Certificazione: ISO9001
Termini di pagamento e spedizione
Packaging Details: Our products are packaged in nude or in accordance with the requirements of the customer
Supply Ability: 30 Set/Sets per Month
Descrizione di prodotto
Products Description

Oxygen nitrogen argon storage tank.
Cryogenic vacuum storage tank for double cylinder structure, inner tube and pipe made of stainless steel S30408 shell made of
alloy steel Q245R (carbon dioxide for 16 MNDR inner pressure vessel materials manufacturing, shell made of alloy steel Q345R).
Cryogenic tanks commonly used structure: vertical tanks, horizontal tanks.
We specialize in vacuum insulated liquid storage tanks
Adiabatic method: powder adiabatic
Working pressure: 0.2-3.0mpa
Effective volume: 5m3-200m3
The design temperature: - 196 ° C - 50 ° C
Filling rate: 95%
Product Parameter

We offer a range of tank sizes from 5000 liters to 200,000 liters and in both horizontal and vertical vessels.

colour
white
size
customized
texture
Inner S30408 Outer Q245R
logo
Accept Customized Logo
Standard
GB150/ASME
Design Pressure(MPa):
0.8/1.6
Condition
New
Brand name
SHD
Service life
20years
Place of Origin
China
Application
food freezing/fish pond/metal/gas cylinder filling

Specifications


The effective volume

(m3)

Maximum working pressure
(MPa)

Empty container
(kg)

Outline dimension
(Diameter * height)


5

0.2

3623

1916x5260

0.8

3825

1.6

5118


10

0.2

5790

2316x5970

0.8

6235

1.6

10710

2.0

13200

30

0.2

13527

2720x10230

0.8

15100

1.6

18110

50

0.2

18650

3020x12670

0.8

21565

1.6

26740

100

0.2

36570


3524x17040

0.8

44595

1.6

53550

200

0.2

76838

4724x19192

0.8

92143

1.6

108440

Remarks:1 materials used: Q345R/304 stainless steel
2 use: industrial, medical, civil natural gas, oxygen, argon, carbon dioxide, nitrogen gas units centralized gas supply


Details Images

Our Advantages

WEDDING TECHNOLOGY
Compared to conventional manual welding, mechanical automatic welding is a method in which an electric arcis burned under the flux layer for welding. Mechanical automatic welding is one of the most efficient mechanizedwelding methods available today. stable welding quality, high welding productivity, there is no arc and smokedust and so on, so that our products are neat, smooth and beautiful, also extend the service life.
PAINTING TECHNOLOGY
Standard finish:Our standard finish on the outer surface is highly effective against corrosion.. Firstly, the entiretank is sandblasted and rusted, sprayed with primer, and then externally sprayed with polyurethane topcoat fordouble-layer rust and anti-corrosion treatment.For some customers in special environments，we havedeveloped anti-corrosion type to prevent acid-base.Thereby extending the service life of the product underspecial environments.
100% tested before shipping
One year warranty and guarantee
Certificate with ISO,MID,PCEC,etc
Hot selling in South America,factory direct selling
Our Company

ANYANG SHANGHUANGDING METAL MATERIALS CO.,LTD is an international foreign trade export company, is located in Anyang City, Henan Province. The company currently has 40 employees in the International Foreign Trade Department, including more than 20 sales in the Foreign Trade Department, 8 in the Foreign Trade Operations Department, 4 in the Purchasing Department, and 5 in the engineering and technical personnel. 3 Persons in documentary. Our company technology, strong capital, and complete quality assurance system.
We got ISO quality and environmental certification, quality problems in production can be tracked and forth to ensure the quality of the pressure vessel is controlled. With standardized management, professional design, scientific and quality construction to achieve efficient use of consumers.
Certificate

Project

our products have been exported to 32countries around the world and well received bycustomers.If we received any questions formcustomers.we will reply and give our customerssolution within 24 hours.
main product

Packing & Delivery

Our company has strong economic strength, perfect technology and equipment, strong new product development capability, and has more than 180 processing equipments.The equipment has a lifting capacity of 100T and an annual production capacity of 10,000 tons.
