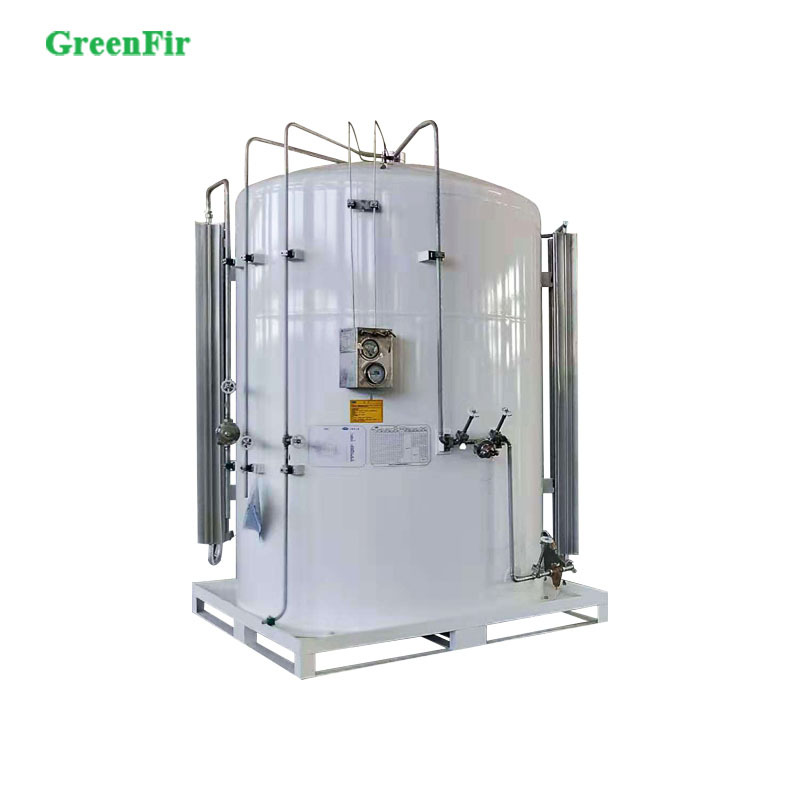

Cryogenic Liquid Gas CO2 Storage Tank

1 Set
MOQ
$10,000.00(>=1 Sets)
prezzo
Cryogenic Liquid Gas CO2 Storage Tank
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Condition: New
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Energy & Mining
Max Working Pressure(MPa): 1.6 MPa
Video outgoing-inspection: Not Available
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: PLC, Bearing, Pressure vessel
Capacity: 10-250m3, 2-250m3
Dimension(L*W*H): Actual Dimension
Weight: Actual Weight
Warranty: 18 Month
Key Selling Points: Accurate temperature control
Showroom Location: None
Product name: Cryogenic liquid storage tanks for LOX, LIN, LAR, LNG,LCO2
Application: Gas, chemical, machinery, metallurgy, medical and other industries.
Working pressure: 1.6Mpa
Working medium: LO2/LAr/LN2/LCO2/LNG/Liquified ethylene and etc
Color: White or customized
Adiabatic mode: Vacuum insulation
Structure: Horizontal or vertical type vessels
OEM: Available
Design life: 20 years
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
Certificazione: ASME, GB150, ISO9001
Informazioni di base
Certificazione: ASME, GB150, ISO9001
Termini di pagamento e spedizione
Packaging Details: 1.20ft &40ft container 2.Nude packing or Seaworthy packing 3.Customer's Request
Supply Ability: 50 Set/Sets per Month 100m3 cryogenic liquids tanks
Descrizione di prodotto
Related Products
Product Paramenters
Configuration Instructions
Product Details

Product Description:

1Polyderm low temperature mini tank series adopts integrated design and leaves the factory after overall commissioning: the tank, pipeline, base, vaporization and pressurization are fully integrated, no installation and commissioning on site, zero distance from gas equipment, and low loss
2.High vacuum multi-layer adiabatic winding, ultra-low heat conduction structure design, high vacuum maintenance system, and perfect multi-stage vacuum pumping process to ensure that the product has better vacuum performance 3. Based on many years of experience in low-temperature foreign-funded enterprises and extensive research on customer needs, the internal and external pipelines are optimized to provide standard interfaces such as double charging, large-diameter pressure increase, overflow, and venting. Ensure stable gas pressure and flow under the conditions. 4. The connections between the pipelines are welded and card connected, which reduces the possibility of medium leakage, and is safer to use and easier to maintain. 5. The outer cylinder has two types of stainless steel and carbon steel paint to choose, to meet the appearance needs of different customers, according to customer requirements, independent design.
Design
According to ASME, GB150, GB18442 standards.

Application Fields:

These tanks can be widely used in various industries, such as machine building, gas, chemical engineering, synthetic fiber, medical, food industry, mining, electronic, metallurgyand military engineering, etc.

Product Features:

1. Inner vessel: The austenitic stainless steel material which is suitable for cryogenic working condition is adopted. The structure design is optimized and reasonable.
2. Inner pipeline: The flexible design and inspection is to ensure the quality and appearance of the products. Unique energy-saving pipeline design can ensure the safe use of the product in any medium.
3. Outer vessel: Using Q345R materials, it is equipped with special stainless steel transport support, and lateral lifting lugs to transport easily and reduce the installation cost greatly.
4. Vacuum insulation: We use unique leak detection process, high quality pearl sand, high vacuum multilayer insulation, special sand irrigation process, so that our products have excellent vacuum insulation performance.
5. Valve piping system:
The structure is compact. The pipe length is less than that of the conventional tank, and the heat loss of the external pipe is effectively reduced.
②The combination valve reduces the number of welded joints to improve safety and reliability, and reduce maintenance costs.
With all stainless steel piping design, it provides reliable performance for long service.
6. Safety: The storage tank is equipped with a double safety discharge system with two safety valves and two bursting discs, which enables one of them to be isolated while the other is maintained or under repair.
7. Cleaning standards: All parts in contact with the medium shall be cleaned in strict accordance with the requirements for storing liquid oxygen.
8. Outer surface: It is shot blasted and protected with two layers of coating: high anti-corrosion primer followed by a reflective white polyurethane epoxy topcoat.
Quality Promise
1.Product technology level:
They are designed, manufactured, inspected, and accepted in accordance with advanced European and American national standards and specifications, and meet the requirements of Chinese national standards and specifications. Products with high requirements for the reliability and safety of gasifiers.
2.Overall product quality assurance:
Ensure that the product design, manufacturing, inspection, and acceptance processes (design → procurement → component manufacturing and welding → assembly → inspection and testing → non-destructive testing → final assembly and packaging before delivery) are effectively implemented in strict accordance with the requirements of the ISO9001: 2008 quality management system Control and form records, the buyer can select control points to the site for inspection and confirmation as required, and the factory will provide the necessary working conditions.
Quality guarantee period is 12 months for normal equipment operation
Security Settings
1.The storage tank is equipped with a combined safety device (safety valve) to prevent the equipment from operating under pressure.
2.Each storage tank is also equipped with an auxiliary rupture disk device to further prevent the equipment from overpressure. This rupture disk will completely burst when the safety valve fails and the pressure exceeds the pressure of the
rupture disk to release the internal tank pressure.
