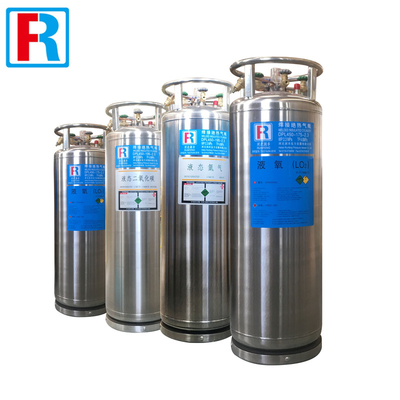

Industrial Gas PGS VGL LGC Cylinder Oxygen Tank O2 Cylinder Cryogenic Liquid Medical Oxygen Gas Cylinder

1.0 Pieces
MOQ
Industrial Gas PGS VGL LGC Cylinder Oxygen Tank O2 Cylinder Cryogenic Liquid Medical Oxygen Gas Cylinder
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Pressure: Low
Model Number: DPL-175L-1.37/2.3/2.88Mpa
Material: stainless steel
Use: Industrial Gas
Nominal Capacity: 175L
Working Pressure: 1.37-2.88Mpa
Dimensions: 505*1551mm
Evaporation: ≤2.1%
Empty Vessel weight: 116-158
Level Gauge: Floating
Informazioni di base
Model Number: DPL-175L-1.37/2.3/2.88Mpa
Termini di pagamento e spedizione
Supply Ability: 3500 Piece/Pieces per Month Portable Gas Supply (PGS) Cryogenic liquid cylinder
Descrizione di prodotto

PGS VGL LGC cylinder Cryogenic liquid o2 oxygen tank cylinderr





Product Description


 cryogenic cylinder storage (Vertical)

ITEM

MP  Low Pressure Series

Model

DPL-175-1.37

DPL-195-1.37

DPL-210-1.37

Dimension(O.D. × Height ) mm

φ 505×1551

φ 505×1676

φ 505×1761

Nominal Volume              L

175

195

210

Effective Volume            L

160

180

195

Service Pressure           Mpa

1.37

1.37

1.37

Empty Vessel Weight   (Kg)

116

125

142

Setting Pressure of  Safety Device Mpa

Filling LNG, 1 class safty valve setting pressure :1.59, 2 classvalve pressure:2.41
Filling LO2/LN2/Lar,safty valve setting pressure : 1.59, Burst pressure of bursting disc:2.4

Filling Medium

LO2

LN2

LAr

LNG

LO2

LN2

LAr

LNG

LO2

LN2

LAr

LNG

Max. Filling Weight     kg

170

120

208

70

190

134

232

78

205

145

250

84

Standard Volume        Nm3

119

96

116

97

133

107

130

109

143

116

140

117

Normal Evaporation Rate  %/d

LN2≤2.1

LN2≤2.02

LN2≤1.99

Liquid Level Gauge

Float

Float

Float

Surface Treatment

Polish

Polish

Polish



ITEM

HP series

Model

DPL-175-2.3

DPL-195-2.3

DPL-210-2.3

Dimension(O.D. × Height )   mm

φ 505×1551

φ 505×1676

φ 505×1761

Nominal Volume                  L

175

195

210

Effective Volume                 L

160

180

195

Service Pressure                 Mpa

2.3

2.3

2.3

Empty Vessel Weight          (Kg)

133

145

160

Setting Pressure of Safety Device Mpa

Filling LNG, 1 class safety valve setting pressure :2.41, 2 class valve pressure:3.45
Filling LO2/LN2/Lar,,safety valve setting pressure :2.41, Burst pressure of bursting disc:3.62

Filling Medium

LO2

LN2

LAr

LNG

LCO2

LO2

LN2

LNG

LCO2

LO2

LN2

LAr

LNG

Max. Filling Weight                     kg

170

120

208

70

164

190

134

78

183

205

145

250

84

Standard Volume                    Nm3

119

96

116

97

83

133

107

109

93

143

116

140

117

Normal Evaporation Rate         %/d

LN2≤2.1

LN2≤2.02

LN2≤1.99

Liquid Level Gauge

Float

Float

Float

Surface Treatment

Polish

Polish

Polish



ITEM

VP series

Model

DPL-175-2.88

DPL-195-2.88

DPL-210-2.88

Dimension(O.D. × Height )        mm

φ 505×1551

φ 505×1676

φ 505×1761

Nominal Volume                         L

175

195

210

Effective Volume                        L

160

180

195

Service Pressure                     Mpa

2.88

2.88

2.88

Empty Vessel Weight               (Kg)

158

169

169

Setting Pressure of Safety Device Mpa

 Safety valve setting pressure :3.45
Burst pressure of bursting disc: 5.17

Filling Medium

LO2

LN2

LAr

LCO2

LO2

LN2

LAr

LCO2

LO2

LN2

LAr

LCO2

Max. Filling Weight                     kg

170

120

208

164

190

134

232

183

205

145

250

197

Standard Volume                    Nm3

119

96

116

83

133

107

130

93

143

116

140

100

Normal Evaporation Rate         %/d

LN2≤2.1

LN2≤2.02

LN2≤1.99

Liquid Level Gauge

Float

Float

Float

Surface Treatment

Polish

Polish

Polish







SHOW DETAILS





PRODUCTION PROCESS



Company Information



Our focus is cryogenic pressure vessels, dewar, LNG station equipments, industry gas equipment system products, Runfeng is famous for design and manufacture of highly engineered cryogenic equipment used from the beginning to the end in the liquid gas supply chain.our domestic operation located in china and our products are most welcomed in Russia and Southeast Asia countries. Our tagline is become your lifelong trustworthy and honest supplier



Similar Products



FAQ

FAQ



1. Pressure in the container is low.

     Recommended Activity: 1) Refer to the instruction manual and use according to the recommended                                                 maximumgas withdrawal rate and supercharging capacity

                                              2) Open pressure building regulator or pressure building valve

2. The cylinder is filled but no pressure display

    Recommended Activity:  1)Change the pressure gauge

                                              2)change the rupture disk

                                              3)Repair or replace the valve

3. The bottom of container covered with  spiral frost

   Recommended Activity:  It is normal

4. The top of container covered with frost

    Recommended Activity:1)Check the leakage of the liquid level gauge connection, replace the seal                                                washer, re-install and do air tight test after the pressure is empty

                                             2) Tighten joint and do air tight test
