Caratteristiche

Specificazioni

MPGM: 36,000 kg

Tare Mass (approx - TBC): 12,200 kg

Size: 12,192*2,438*2,591 mm

Inside Diameter: 2,190 mm

Tan to Tan: 10,285 mm

Head Minimum Thickness A/F: 7 mm

Inner Vessel Design Temperature: -196 Â°C

Maximum Allowable Working Pressure: 10.0 bar

Type Of Insulation: High Vacuum Multi-layer Insulation

Seal-off Vacuum Degree: â‰¤ 0.1pa

Informazioni di base

Termini di pagamento e spedizione

Supply Ability: 30 Unit/Units per Month

Descrizione di prodotto

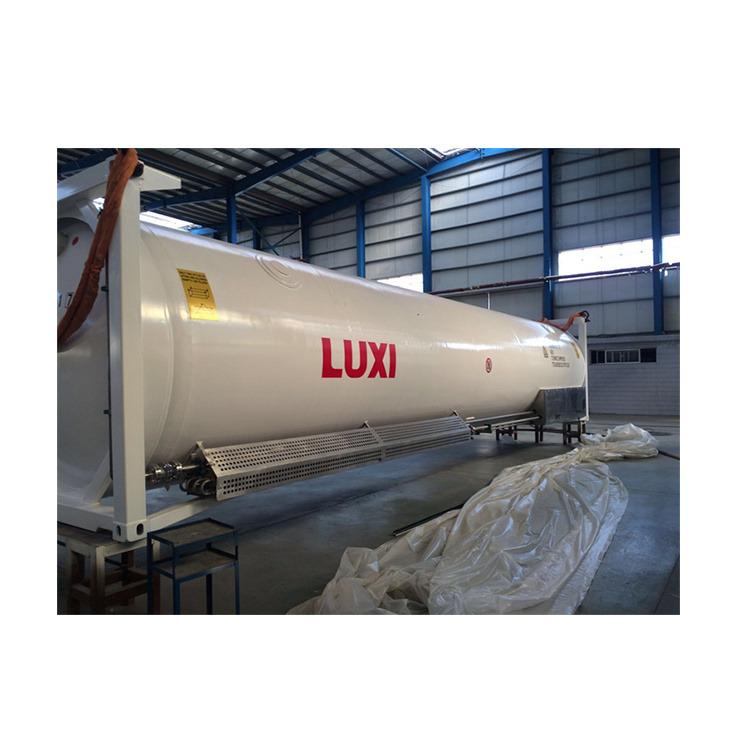

Products Description

Specification

Frame Dimensions & Mass
MPGM	36,000 kg
Tare Mass (approx - TBC)	12,200 kg
Size(LengthWidthHeight)	12,1922,4382,591 mm
Tank Dimensions
Inside Diameter	2,190 mm
Tan to Tan	10,285 mm
Shell Nominal Thickness	8 mm
Pressure & Temperature Rating
Design Temperature	-196 °C
Maximum Allowable Working Pressure	10.0 bar
Pneumatic Test Pressure	14.3 bar
Leak Test Pressure	9.0bar
Insulation
Type Of Insulation	High Vacuum Multi-layer Insulation
Material	Aluminium Foil
Seal-off Vacuum Degree	≤ 0.1pa
Outguessing Rate Of Vacuum Inters pace	≤1×10-6 pa·m3/s
Static Evaporation Rate	LN2: ≤0.24%/d

Related Product

Company Profile

Shandong Hongqiao Energy Equipment Technology Co., Ltd. is committed to the sales of clean energy equipment such as natural gas and hydrogen energy. After years of continuous development, a series of equipment products for the storage, transportation, charging and use of compressed gas, high-pressure liquefied gas and low-temperature liquefied gas have been formed; gas (oil) boilers; pressure and atmospheric pressure special vehicle series products; gas filling station , gasification station, hydrogen refueling station, overall design and construction of large tank farms. At the same time, cooperate with China Special Equipment Inspection and Research Institute to carry out inspection, maintenance and transformation service projects of mobile containers and fixed containers, and provide customers with high-quality value-added services. The company takes protecting the environment as its own responsibility, and takes the R&D, manufacturing and installation of green and clean energy equipment as its leading role. With excellent product quality and professional technical services, the sales performance has increased year by year, and it has been exported to Southeast Asia, West Asia, Northern Europe, Western Europe, America, Africa and other places. , Middle East and other countries and regions, has become a clean energy equipment manufacturing enterprise providing first-class technology, first-class equipment and excellent quality. The company's products involve large-volume steel seamless gas cylinders, gas storage cylinder sets, tube bundle containers, CNG mobile skid-mounted gas filling stations, LNG gas cylinders for vehicles, welded insulated gas cylinders, T75 tank containers, LNG cryogenic storage tanks, Cryogenic pump skids, LNG modular skid-mounted gas stations, cryogenic liquid transport vehicles, complete sets of equipment for gas stations, construction of the whole station, etc.

Certifications

Package＆Transport

FAQ

Q1.Are you trading company or manufacturer? A:We are factory. Q2.How Can I order? A:You can directly place an order on our shop in Alibaba web. Or you can tell us the model no of the products you like, then we will send you the quotation. Q3.How does your factory do regarding quality control? A:Quality is priority. Our people always attach great importance to quality. Controlling from the production beginning to the end. We have well-trained and professional workers and strict QC system in each production link. And each product has to be 100% inspected before shipment. Q4.What are the terms of payments? A:We accept T/T、L/C etc. Q5.What is your minimum order? A:Our min order is 1 pcs． Q6.What's your delivery time? A:In general,the delivery time is within 90 days after payment. We'll make the delivery as soon as possiable with the guaranteed quality.
