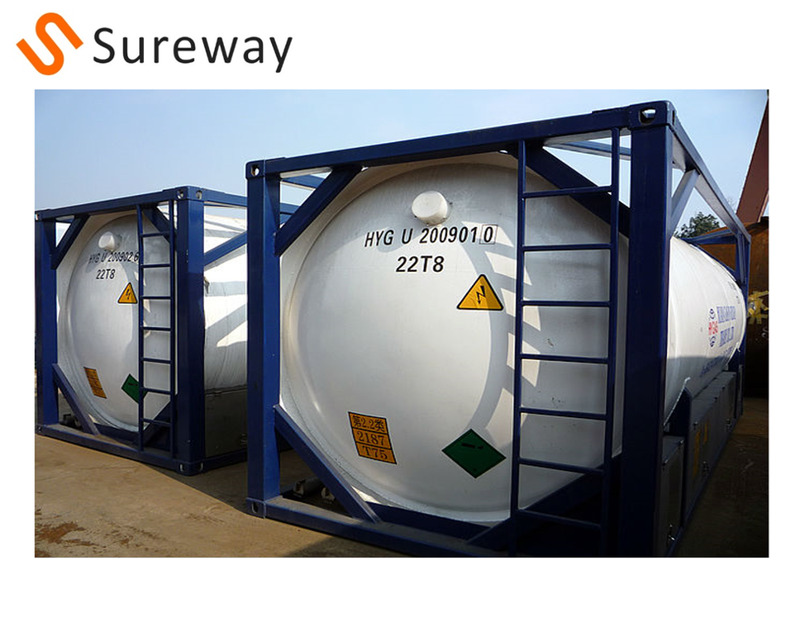

10FT ISO Tank Cryogenic Liquid Cryogenic Tank Container 10000L Oxygen Liquid Tank

10000L Cryogenic Tank/LAR/LIN/LOX/LNG Cryogenic Storage Tank

10000L Oxygen Cryogenic Liquid Tank/LAR/LIN/LOX/LNG Cryogenic Storage Tank :Movable Container

Cryotank or cryogenic tank is a tank that is used to store frozen biological material.

Cryotanks and cryogenics can be seen in many sci-fi movies but today, it is still an up and rising technology. The term “cryotank” refers to storage of super-cold fuels, such as liquid oxygen and liquid hydrogen.

10000L Oxygen Cryogenic Liquid Tank/LAR/LIN/LOX/LNG Cryogenic Storage Tank : Movable Tank

10000L Oxygn Liquid Tank
1.Work pressure:0.2-3.5Mpa
2.Medium:LOX,LIN,LAr,LNG,LCO2
3.Type:Vertical/ horizental

Main technical parameter:

Available max. volume: 10m³

working pressure: 8bar,16bar

Lowest Design temperature : -196 °C

Highest Design temperature: +50 °C

Total Volume: 10.53 m3

Effective volume: 10m3

Filling Ratio: 0.95

Inner tank Material: 0Cr18Ni9

Outside tank Material: Q345-B

Diameter: 2300mm

Length: 5750mm

Empty weight: ~6395kg

Suitable: LIN, LOX, LAr,LNG

Insulation method: vacuum powder or high vacuum multi-layer wrap insulation

Medium: liquid argon/ liquid nature gas/ liquid oxygen/ liquid nitrogen/ liquid carbon dioxide
