Casa /Prodotti/Carro armato di immagazzinamento criogenico/From China Carbon Dioxide Storage Vertical Type Liquid Co2 Tank 20M3 Cryogenic Storage

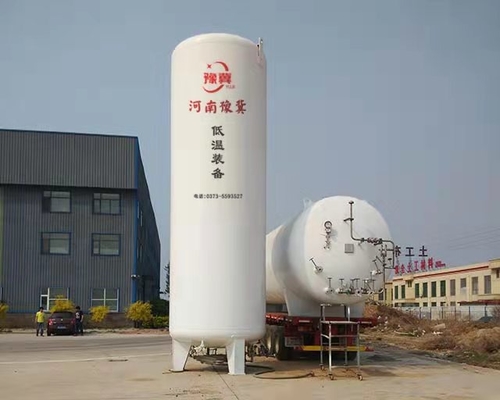

From China Carbon Dioxide Storage Vertical Type Liquid Co2 Tank 20M3 Cryogenic Storage

1 Set
MOQ
$10,000.00(>=1 Sets)
prezzo
From China Carbon Dioxide Storage Vertical Type Liquid Co2 Tank 20M3 Cryogenic Storage
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: PLC, Pressure vessel, Pump
Dimension(L*W*H): Customized
Capacity: Customized
Weight: 100
Volume (m³): 5~250m³
Inner Material: Q345R
Outer Material: Q345R
Design Pressure(MPa): 0.2~3.5
Max Working Pressure(MPa): 3.6 MPa
Design Standard: ASME/PED/GB
Working Temperature(℃): -196 - 40 ℃
Warranty: 1 Year
Key Selling Points: Automatic
Applicable Industries: Building Material Shops, Manufacturing Plant, Construction works , Energy & Mining, Automotive parts, aerospace parts
Showroom Location: Egypt, United Kingdom, Saudi Arabia, Russia, Thailand, Kenya, Chile, Ukraine
Product name: From China Carbon Dioxide Storage Vertical Type Liquid Co2 Tank 20M3 C
Application: Industry Equipment
Name: Cryogenic vessels Tank
After-sales Service Provided: Video Technical Support
Key words: Cryogenic vessels Tank
Material: Q345R/Q235
Working medium: liquid nitrogen ,liquid oxgen,liquid argen,LNG
Keyword: Cryogenic vessels
LPG Tank Capacity: 5~250m³
Standard: GB150-1998"Pressure Vessels"
Informazioni di base
Termini di pagamento e spedizione
Packaging Details: Water proof and damp proof package for WNS2.8 MW hot water boiler host Wooden cases package for WNS2.8 MW hot water boiler auxiliaries
Supply Ability: 500 Set/Sets per Year
Descrizione di prodotto
Product Description

Cryogenic liquid storage tank is a series of products in the first, second and third class pressure vessels produced by our company. The series of products are strictly in accordance with TSG21-2016 "Fixed Pressure Vessels Safety Technical Supervision Regulations", GB/T150-
2011 "Pressure Vessel", GB18442-2011 "fixed vacuum adiabatic Cryogenic pressure vessel" design, manufacture, inspection and acceptance.
Low temperature liquid storage tank is double wall, vertical (horizontal) structure, vacuum powder insulation, with compact structure, low daily evaporation rate, small footprint, centralized control, safe and reliable, easy operation and maintenance, etc.
Ccryogenic vessel tank parameters

Model
Working pressure（Mpa）
Medium
Volume（m³）
Weight（kg）
YUL5/0.8




0.8Mpa




LOx、LN2、
5
3412
YUL10/0.8
10
5300
YUL20/0.8
20
8200
YUL30/0.8
30
12900
YUL50/0.8
50
18900
YUL100/0.8
100
34480
YUL5/1.6




1.6Mpa




LOx、LN2、
5
3900
YUL10/1.6
10
6780
YUL20/1.6
20
10700
YUL30/1.6
30
14600
YUL50/1.6
50
23370
YUL100/1.6
100
36000
Specification
item
value
Place of Origin
China
Brand Name
YUJI
Condition
New
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
Ordinary Product
Warranty of core components
1 Year
Core Components
PLC, Pressure vessel, Pump
Dimension(L*W*H)
Customized
Capacity
Customized
Weight
100
Volume (m³)
5~250m³
Inner Material
Q345R
Outer Material
Q345R
Design Pressure(MPa)
0.2~3.5
Max Working Pressure(MPa)
3.6 MPa
Design Standard
ASME/PED/GB
Working Temperature(℃)
-196℃ - 40℃
Warranty
1 Year
Key Selling Points
Automatic
Applicable Industries
Building Material Shops, Manufacturing Plant, Construction works , Energy & Mining, Automotive parts, aerospace parts
Product name
20m3 Liquid Co2 Tank Food Grade Storage Cryogenic vessels Tank
Application
Industry Equipment
Material
Q345R/Q235
Working medium
liquid nitrogen ,liquid oxgen,liquid argen,LNG
Keyword
Cryogenic vessels
LPG Tank Capacity
5~250m³
Standard
GB150-1998"Pressure Vessels"
Packing & Delivery
1.20&40 container or 20&40 flat container packing, according to the model of boiler. 2.the smaller auxiliary equipments are encased by using the strong intensity wooden or plywood box. 3.The products could be transported by ship and train, customers could designate the ports. 4.If necessary, the small auxiliaries could be transported by airplane.
Company Profile
Henan Yuji Boiler Vessel Manufacturing Co., Ltd. is the general administration of quality supervision, inspection and quarantine of the People's Republic of China approved the boiler and pressure vessel designated manufacturing enterprise, The company passes ISO 9001 international quality system certification, and gains the EU CE and other international certification ect. We ensure the quality of our products with our life. Quality assurance systems are set, include the design production, technology management, material experiment, welding control, inspection and audit, measurement and production management. The technology center has enterprise cooperation relationship with Many famous universities in China, leading the industry with innovation and new technology, and building a strong research and development system. The main products are oil gas fired boiler, coal fired grate boiler, biomass fired grate boiler, thermal oil heater, electric heating boiler etc. Yuji boiler has exported to more countries, including Uzbekistan, Pakistan, Vietnam, Indonesia, Cambodia, Myanmar, Russia, Mongolia, Switzerland etc.
FAQ
1. who are we?
We are based in Henan, China, start from 2020,sell to Domestic Market(60.00%),Eastern Europe(10.00%),Southeast Asia(10.00%),Africa(5.00%),South Asia(5.00%),Southern Europe(5.00%),Eastern Asia(5.00%). There are total about 201-300 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Oil Gas Fired Steam Hot Water Boiler,Biomass Coal Fired Boiler,Electric Generator Boiler,Boiler Valve Parts,Pressure Vessels

4. why should you buy from us not from other suppliers?
We hold grade B boiler manufacture license and class D1 & D2 pressure vessels design and manufacture license, and also pass to ISO 9001:2000 quality management system certification and CE certificate of EU.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
