Casa /Prodotti/Carro armato di immagazzinamento criogenico/Factory new liquid oxygen tank 10m3 cryogenic tank storage tank for hospital medicine

Factory new liquid oxygen tank 10m3 cryogenic tank storage tank for hospital medicine

1 Set
MOQ
$22,300.00(>=1 Sets)
prezzo
Factory new liquid oxygen tank 10m3 cryogenic tank storage tank for hospital medicine
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Condition: New
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Energy & Mining
Max Working Pressure(MPa): 1.6 MPa
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Pressure vessel
Capacity: 10KL
Dimension(L*W*H): 2000mm*2000mm*7895mm
Weight: 6787kg
Warranty: 1 Year
Key Selling Points: Competitive Price
Showroom Location: Viet Nam, Thailand
Product name: 10m3 Cryogenic Liquid Nitrogen Oxygen Tank Pirce
Outer material: Q345R
Inner material: OCr18Ni9(S30408)
Type: Veritical
Medium: LO2,ln2,lar
Color: White or customized
Volume: 10KL
Working pressure: 1.6Mpa
Usage: Store Liquid
Other name: Cryogenic Liquid Tank
After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Viet Nam, Russia, Thailand, UAE
Certificazione: ASME, GB, ISO
Informazioni di base
Certificazione: ASME, GB, ISO
Termini di pagamento e spedizione
Packaging Details: Liquid Oxygen Tank 10m3 Cryogenic Tank New Storage Tank For Hospital Medicine: 1.20ft &40ft container 2.No packing or Seaworthy packing 3.Customer's Request
Supply Ability: 200 Set/Sets per Month
Descrizione di prodotto
Product Description

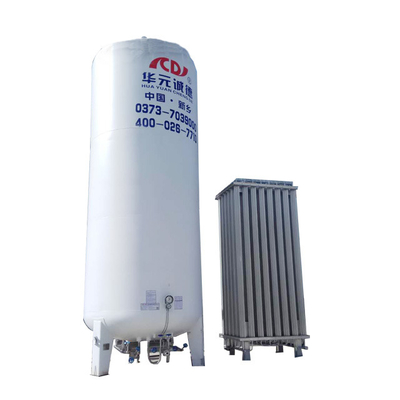

Liquid Oxygen Tank 10m3 Cryogenic Tank New Storage Tank For Hospital Medicine

1. Cryogenic liquid storage tank for double wall ,vertical structure ,adopt vacuum powder insulation.
2. Cryogenic liquid storage tank with the advantage of compact structure , low daily evaporation rate,small footprint, centralized control, safe, reliable, easy operation and maintenance.

Technical Parameter
Model CFL-10/1.6
Effective Capacity 10000L
Working Pressure 1.6Mpa
Design Temp -196°C (inner tank)
Inner Material S30408
Outer Material Q245R
Insulation Type High Vacuum powder insulation
Fillling Rate 95%
Loading medium LO2,LN2,LAr
Design Standard

a.GB150 <Pressure Vessels>

b.GB/T 18442< Cryogenic >Insulation Pressure Vessels>

c.TSGR0004 <Pressure Vessels’ Safety Technical Supervision Rules>
Our Company

Xinxiang Chengde Energy Technology Equipment Co., Ltd.

Our company was founded in 2002, located in Industrial Park, Fengquan district, Xinxiang city, Henan province. The company has been committed to the pressure vessels, cryogenic equipment and gas equipment in the field of research and development, design, manufacture and installation.

Its main products are: cryogenic liquid storage tank, flat large cryogenic liquid storage tank, cryogenic liquid pump, ambient type vaporizer, water bath vaporizer, gas pressure regulating device and non-standard pressure vessel etc.

Packing & Delivery

1. Our products are packaged according to the requirements of the customer.

2. Our company have a professional team of installation and debug , we can provide installation, debug and start-up etc service for customers if you need.

3.Whenever our customers have question, after we received your question, we will give you feedback within 24 hours.
