Petrol station/mining vertical 3m3-150m3 cryogenic liquid oxygen storage tank/fish farming hospital 1.6Mpa for LO2 storage

1 Set
MOQ
$19,999.00(>=1 Sets)
prezzo
Petrol station/mining vertical 3m3-150m3 cryogenic liquid oxygen storage tank/fish farming hospital 1.6Mpa for LO2 storage
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Condition: New
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Construction works , Energy & Mining, Food & Beverage Shops, Chemical Machinery
Max Working Pressure(MPa): 1.6 MPa
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Motor, Pressure vessel, Pump
Capacity: 5000 Liter
Dimension(L*W*H): 4812*1916*2160mm
Weight: 4020Kg
Warranty: 1 Year
Key Selling Points: Long Service Life
Showroom Location: Kenya, South Africa, Nigeria
Product name: 1.6Mpa vertical oxygen cryogenic liquid storage tank for LO2 storage
Application: filling station / fish farm / hospital
Material: stainless steel
Color: White / customzied
Type: Vertical or Horizontal
Medium: LNG/O2/N2/Ar2/CO2
Standard: GB150-2011
Keywords: Oxygen tank liquid
Design pressure: 12bar
Certificazione: ISO9001, ISO9001
After-sales Service Provided: Free spare parts, Field maintenance and repair service, Video technical support, Online support
After Warranty Service: Video technical support, Online support, Spare parts
Local Service Location: Viet Nam, Philippines, Indonesia, Pakistan, Russia, Spain, Japan, Malaysia, Kenya, South Korea, UAE, South Africa, Nigeria
Informazioni di base
Certificazione: ISO9001, ISO9001
Termini di pagamento e spedizione
Packaging Details: Our products are packaged in nude or in accordance with the requirements of the customer
Supply Ability: 30 Set/Sets per Month
Descrizione di prodotto
Product Description

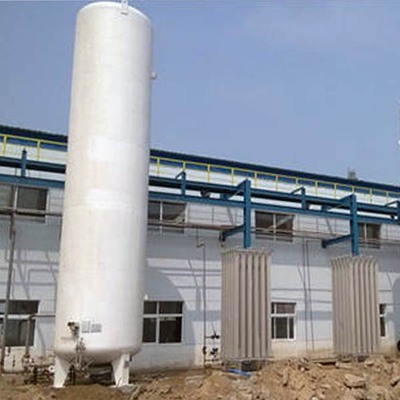

1.6Mpa vertical 3m3-150m3 oxygen cryogenic liquid storage tank for LO2 storage

    Oxygen tank liquid is for double wall, inner layer adopts S30408 stainless steel and outer layer adopts Q245R alloy steel, vertical or horizontal structure, adopt vacuum powder insulation, with the advantage of compact structure, low daily evaporation rate, small footprint, centralized control, safe, reliable, easy operation and maintenance.
Application

Product Application of Oxygen liquid tank

    With rapid scientfic and technological development, the material-stored technology by use of Oxygen liquid tank under normal temperature gets mature day by day. Compared with other storage methods, stainless steel storage tank built in a small area, thus reducing storage tank cost. It is simple in structure and easy in construction, thus reducing construction cost.

Product Process
Certifications

Certification of Oxygen liquid tank

    We can guarantee the safety of our products. We've got all the certification to meet the high standard. And we have professional and strict quality control. Each step in the manufacturing process has been strictly monitored to Oxygen liquid tank in high quality.

Parameters
Parameter of Oxygen liquid tank
Parameters are for reference, we can customized from 5000 liter to 150000 liter, both vertical and horizontal tank
Model
Volume
(cbm)
Working Pressure (Mpa)
Empty container
(kg)
Type
The rate of evaporation (%)
Outline Size
(Dia * height)
mm
JSSM5-L0.8
5
0.8
3825
Vertical
0.29
1916*5260
JSSM5-W0.8
5
0.8
3950
Horizontal
0.29
1916*5260
JSSM10-L0.8
10
0.6/0.8
6450/6675
Vertical
0.25
2316*6000
JSSM10-W0.8
10
0.6/0.8
6450/6675
Horizontal
0.25
2316*6000
JSSM15-L0.8
15
0.6/0.8
8145/8415
Vertical
0.22
2516*6760
JSSM15-W0.8
15
0.6/0.8
8145/8415
Horizontal
0.22
2516*6760
JSSM20-L0.8
20
0.6/0.8
9700/9940
Vertical
0.22
2516*8430
JSSM20-W0.8
30
0.6/0.8
15240/15540
Horizontal
0.21
2516*8430
JSSM40-L0.8
40
0.6/0.8
17905/18005
Vertical
0.18
3120*9725
JSSM50-W0.8
50
0.6/0.8
22310/22715
Horizontal
0.16
3120*11917
JSSM100-L0.8
100
0.6/0.8
42179/44020
Vertical
0.12
3524*17110
JSSM150-W0.8
150
0.6/0.8
64755/66750
Horizontal
0.12
3824*21950
Our Company

    Henan Jian Shen Metal Metenrial Co.Ltd has now become a high-tech enterprise integrating research, production, sales and services after years of steady development. Our vision - TO be a supplier of choice in the Pressure Vessels as well as OEM manufacturing with the emphasis of being being lowest in cost and highest in customer satisfaction and quality.

Packing & Delivery

 Transport of Oxygen liquid tank

    Sea transportation. Seaworthy packing or according to customers requirements

    Under 10ton(10000liters) tank can be put into container during shipping.
