eco-friendly flexible tpu diesel fuel oil storage bladder liquid storage fuel square tanks

1 Unit
MOQ
$105.00(1 - 49 Units) $103.00(50 - 299 Units) $100.00(>=300 Units)
prezzo
eco-friendly flexible tpu diesel fuel oil storage bladder liquid storage fuel square tanks
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Condition: New
Applicable Industries: Hotels, Farms, Other
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2021
Warranty of core components: 2 years
Core Components: pvc
Material: pvc bag, PVC
Weight: 10kg-10000kg
Size: According to the requirements
Power: 1
Warranty: 2 years
Productivity: 1000L
Weight (KG): 20 kg
Product name: Fuel square tanks
Application: Fuel storage
Color: Customized Color
Feature: Eco-friendly
Shape: Square shape
Technology: RO Membrane Filtration
Capacity: 1000L/ OEM
Function: Fuel Storage
Advantage: 20 Years Experiences
After Warranty Service: Video technical support, Online support
Local Service Location: None
After-sales Service Provided: Video technical support, Online support
Informazioni di base
Termini di pagamento e spedizione
Packaging Details: wooden box
Supply Ability: 4550 Unit/Units per Month
Descrizione di prodotto
Product Overview

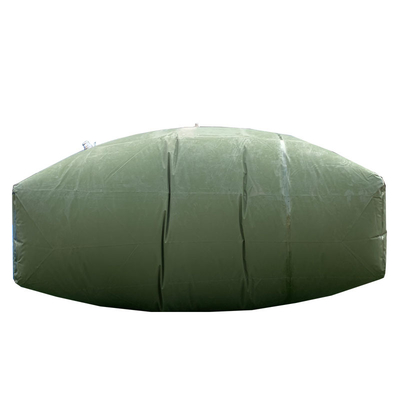

Pvc fuel tank

A fuel sac is a special pressure vessel.The water bag is simple and light, can store residual gas, and can be moved.The product adopts thickened composite cloth, double-sided coating, and contains high density and high strength network cable.
Name
 Pvc  square fuel tank
Brand Name
Baoyuan
Material:
pvc/tpu
Size
Consult customer service for specific size
Weight
Need to customize
color
Blue,green,white,red,yellow,gray,orange, black,camouflage,other colors
Usage
Fuel storage
Custom service
Support for custom
Multicolor / Support for custom
Product Parameter
Category
Introduce
Advantage
Other manufacturers
Welding machine temperature
600℃
Ensure that the sandwich mesh fabric adhesive layer is completely melted, the temperature is too high the adhesive layer is
inactive, the temperature is too low the adhesive layer is not melted;
can't control the temperature accurately
Welding machine pressure
8kg
Under strong pressure, the adhesive layer is fused more closely.
3kg
Welding way
Continuous welding
Guarantee no leakage point of weld joint;
Phase welding
weld width
＞30mm
Make the welding joint strength is higher, difficult to peel;
25mm
Strength after welding
200N/cm
It is 200% higher than other manufacturers
100N/mm
Open mode
 mold opening
More standard, avoid human error
Artificial scissors opening
Double layer welding size at opening
＞100mm
After the opening, the strength of the opening position is reduced, and the opening position is strengthened by double-layer
welding
nothing
Chassis fastening
Robot arm fastening
Standard torque, no leakage
Feel by experience
Details Images




Sturdy, durable:

Made of three layers of PVC clamping net design, wear-resistant and scratch-resistant, longer use







Thick material:
0.7mm-1.8mm, can be customized thickening materials









Heat resistant 90 ℃.Cold resistance -40℃, strong acid, alkali resistance




Compressive Strength




Hot melt reinforcement




The fuel outlet design



Add fueloutlet, fueloutlet is more convenient

Quality inspection show.

Suppression of detection
1. The blower will flush the gas into the water sac to 0.2MPa, and the barometer will keep the parameters unchanged. After standing for 12h, the barometer will be qualified if the parameters do not change;
2. After filling with water, place a weight on the plane of the water sac for gravity test;No overall leakage is qualified;
Successful projects
Project in jining


Outdoor perennial use of fadeless does not age，Can be applied to agricultural water storage, agricultural drought resistance.
Project in taiyuan



Even in the sharp rough ground will not scratch the product，It has the advantages of compression resistance and wear resistance.
Project in linyi

It has the advantages of foldable, soft, mobile, large capacity, customizable, portable, weatherproof and other products, which
are widely used in liquid transportation and liquid storage.
Company Profile
Company profile
Weifang Baoyuan Plastic Products Co., Ltd. is a software container scientific research, development, production, sales, service as
one of the comprehensive enterprises, to "quality-oriented, customer first, scientific and technological development, all-day
after-sales" as the company's business philosophy
Product packaging
Cooperative Enterprise
Our Advantages


Quality problems to provide return, replacement, repair and other services


Provide maintenance materials free of charge for life



24-hour customer service is always on call

Installation services
1. All of our products can provide installation video or video technical guidance, and these services are free of charge;
2. If you want our technicians to come to your place, we should charge you a certain fee.
After sales problem

1. After you receive the goods or use the goods, if you find quality problems, please contact us, I will provide you with
replacement, repair or return services;
2. In case of man-made damage or accident, we will provide repair materials for free, but you have to pay the express fee.
3. We promise to guarantee the quality for two years after you receive the goods. If there are welding cracks and other situations
within two years, we will provide you with replacement, repair or return services;
FAQ


1. Can you provide samples?
A: Yes, we can send you samples so that you can check the quality.
2. Can I get a discount?
A: The price is negotiable. We can give you a discount according to your quantity.
3. How much is the freight?
A: The freight is calculated according to the weight of the package, the mode of transport and the destination
4. Can you offer custom size and style?
A: Yes, we can.
5. What is your lead time?
A: Usually 10 to 15 working days after you receive your payment.If your order is urgent, we can arrange it for you in advance.
6. What is your warranty?
A :1-3 years (except intentional damage).
What will you do if the goods we receive are not of good quality?
Answer: 1. Take pictures of the defective goods to us;2. Keep these goods for us;We will give you a refund or replace the good
goods.
8. What if there is an accident of breakage?
Answer: Our product repair stickers, you need to hot melt to the damaged areas.
9. Can you provide repair materials?
Answer: can provide, and is the material is not charged, but you have to give express fee.
